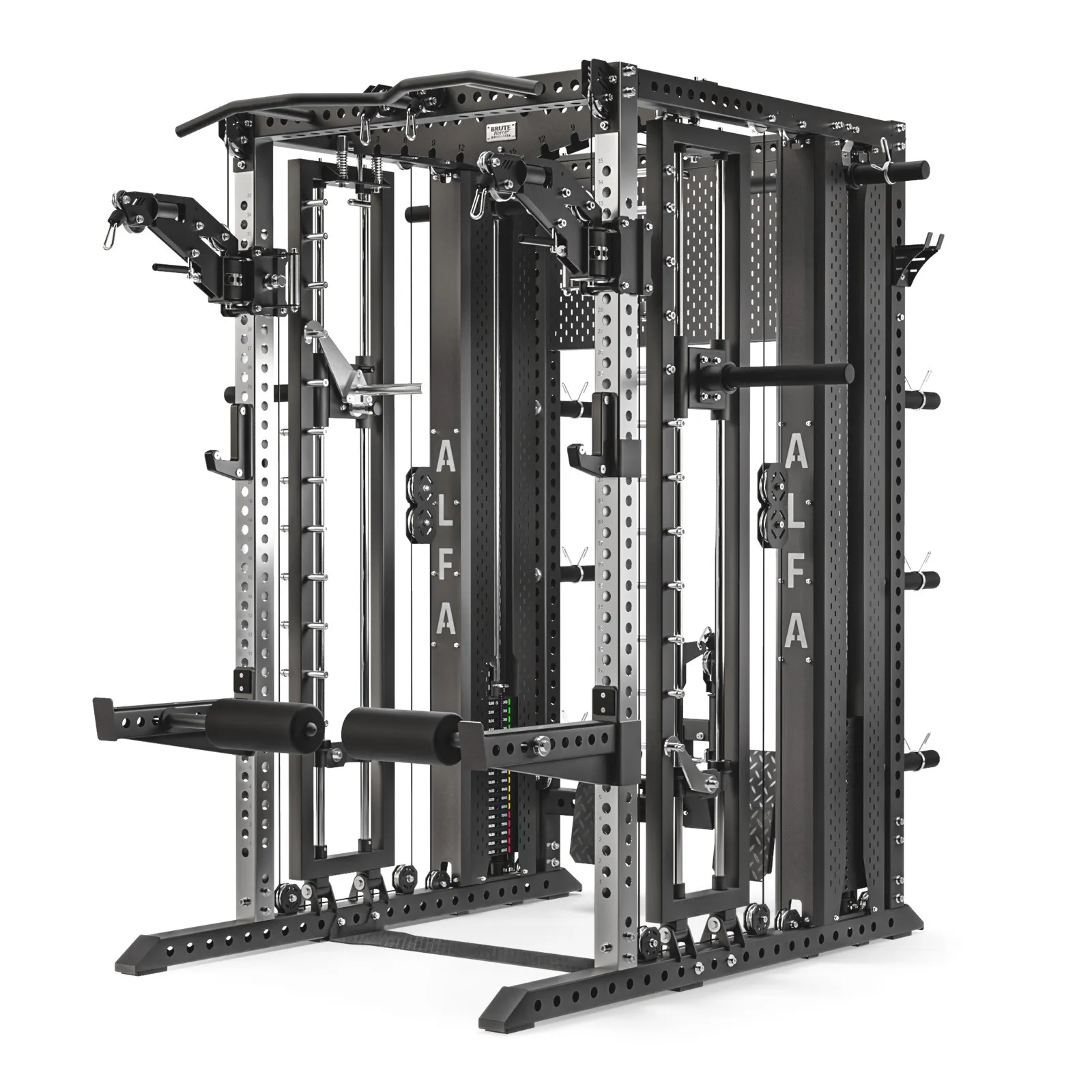

ALFA 3×3 Functional Trainer Converging Smith (PREORDER FOR END OF OCT)

BETTER. RESULTS. FASTER.

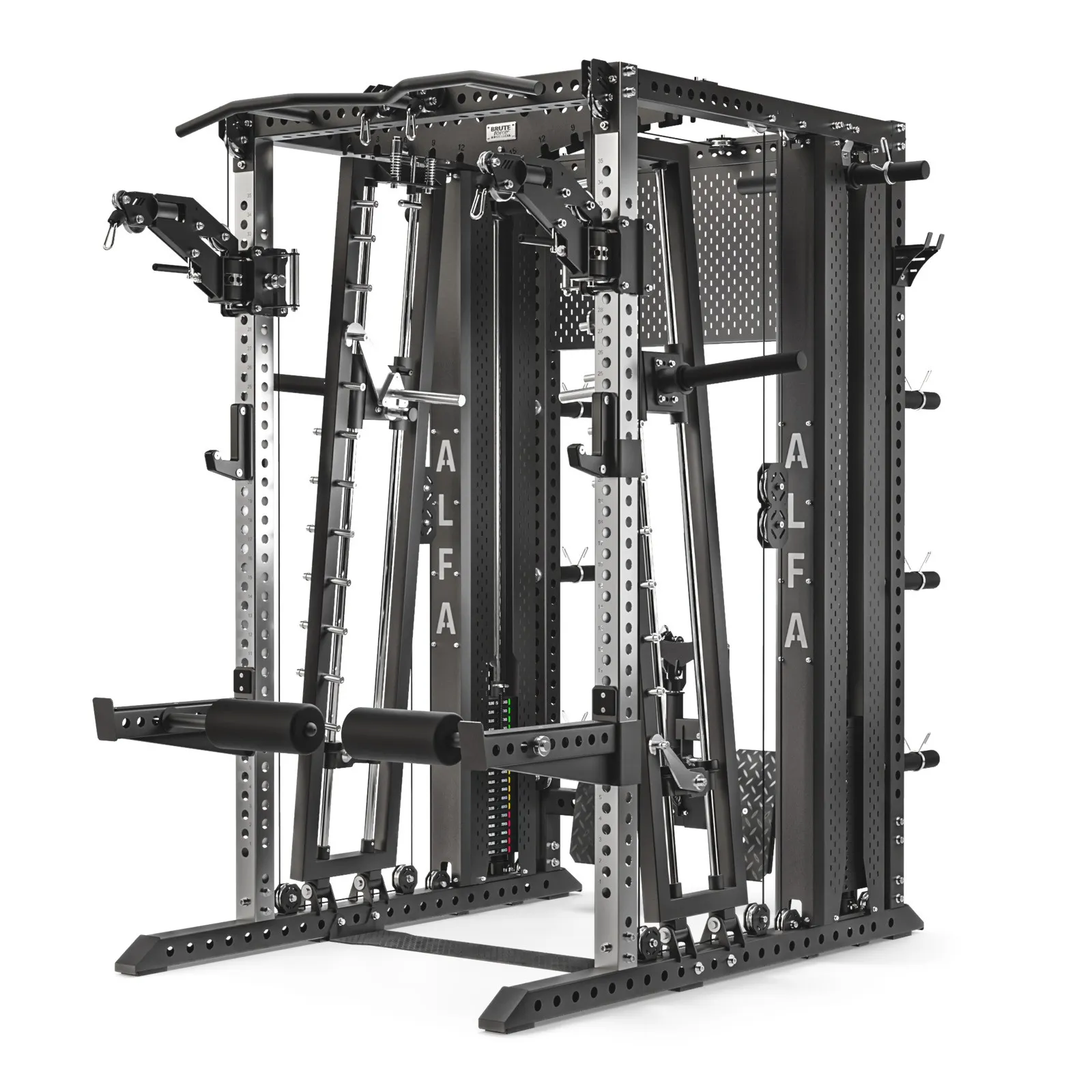

ALFA Converging Smith

The most unique feature of the ALFA 3×3 is by far the Adjustable Converging Smith Machine. Adjustable to 6 varying angles, the Smith allows for more focused targeting of muscle groups and increased workout intensity.

ALFA Smith Attachments

The unique attachment fixing cradles allow for ease of attaching and detaching any of the five Smith handles.

Cables With Range

ALFA has taken standard cable systems to a new level with its multi-directional front pulley sliders. In addition to its generous 35 vertical settings, it also boasts 7 horizontal positions for precise movement angles.

Why ALFA? BETTER. RESULTS. FASTER.

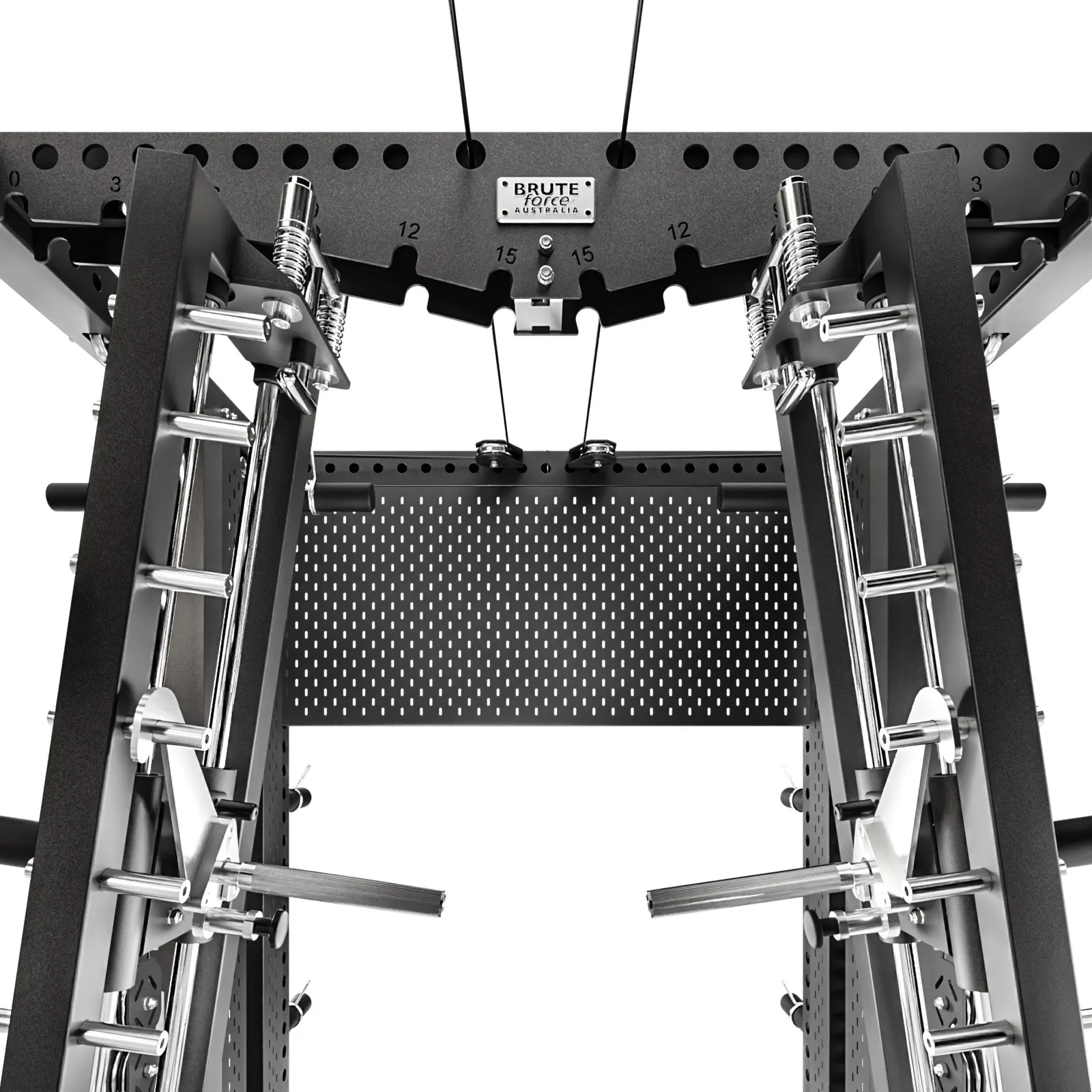

ALFA Adjustable Converging Smith

• 6 adjustable angles
• Easy pin adjustment
• 12 racking points for Smith hooks
• Safety hooks for long bar Smith exercises
• Quick release system
• 2 included ALFA Smith attachments

Included Smith Attachments

• Smith Bar Long – INCLUDED
  Base Weight: 23kg / 50lbs
  Load Capacity – Static Weight: 350kg / 770lbs
• Smith Bar Handles Short – INCLUDED
  Base Weight: 10kg / 22lbs each
  Load Capacity – Static Weight: 175kg / 385lbs each

Optional ALFA Smith Add-Ons

• D-Handles Short – ADD-ON
  Base Weight: 10kg / 22lbs each
  Load Capacity – Static Weight: 175kg / 385lbs each
• Multi Grip Bar – ADD-ON
  Base Weight: 24kg / 53lbs
  Load Capacity – Static Weight: 350kg / 770lbs
• Safety Squat Bar – ADD-ON
  Base Weight: 25kg / 55lbs
  Load Capacity – Static Weight: 350kg / 770lbs
• Variety Pack - ADD-ON

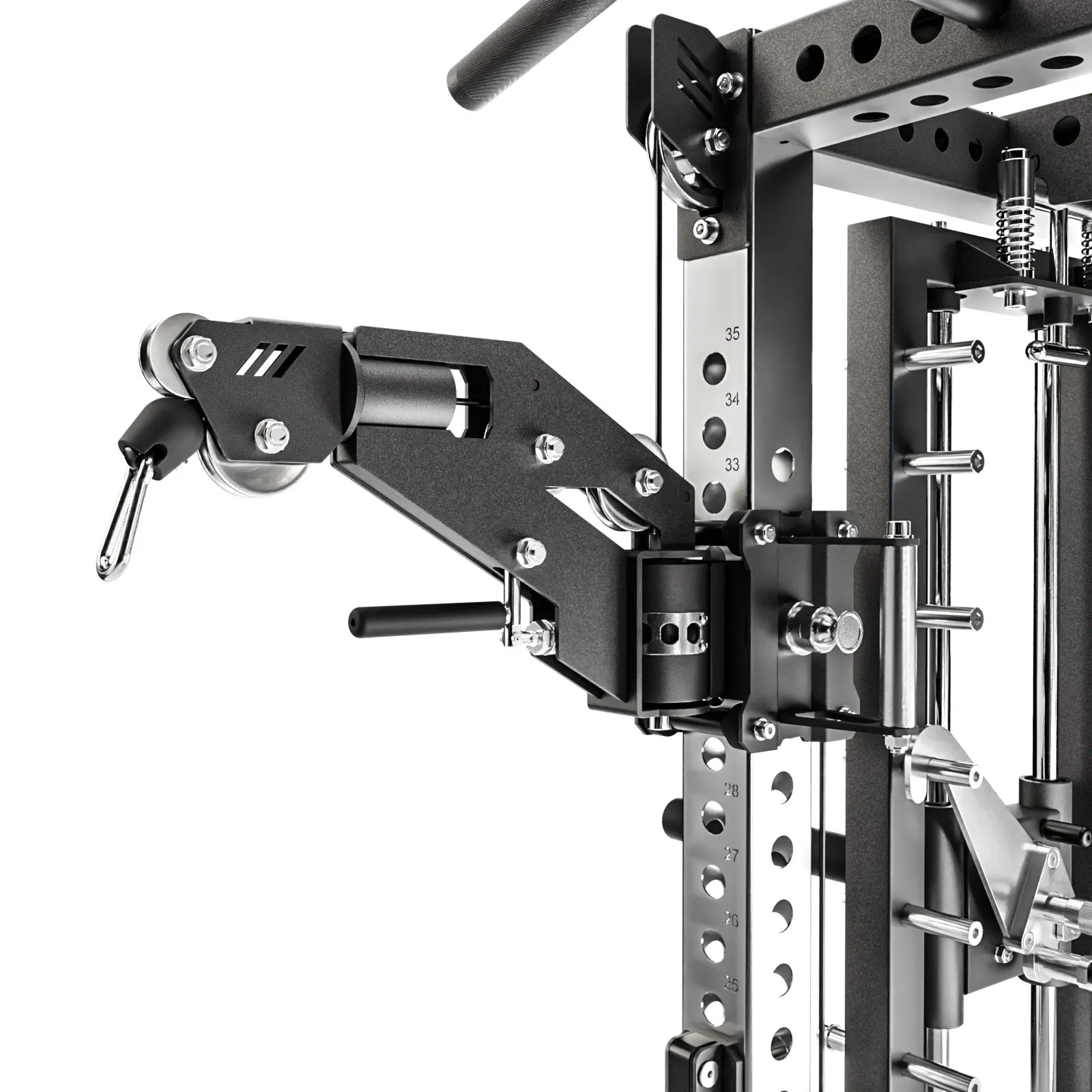

Cables With Range

Featuring the 2:1 aluminium pulley system on the front power rack. Premium bearings ensure a smooth cable feel. A fixing point for the many attachments included with the ALFA makes these cables with range an extremely versatile cable system.

• 33 different height adjustments
• 6 different cable pull points – 1 on each upright trolley, 2 central low and 2 central high
• Pivot arms consisting of 8–12 gauge steel
• 2:1 cable ratio allowing for 5.5lbs / 2.5kg weight jumps and extended cable travel
• 2000lb rated commercial cables
• Sealed bearing free-running quality aluminium pulleys

The Weight Stacks

• Twin 90kg / 198lb precision-cut steel weight stacks
• 15 weight increments
• Easy-access pin-selected weight stacks for quick-changing supersets

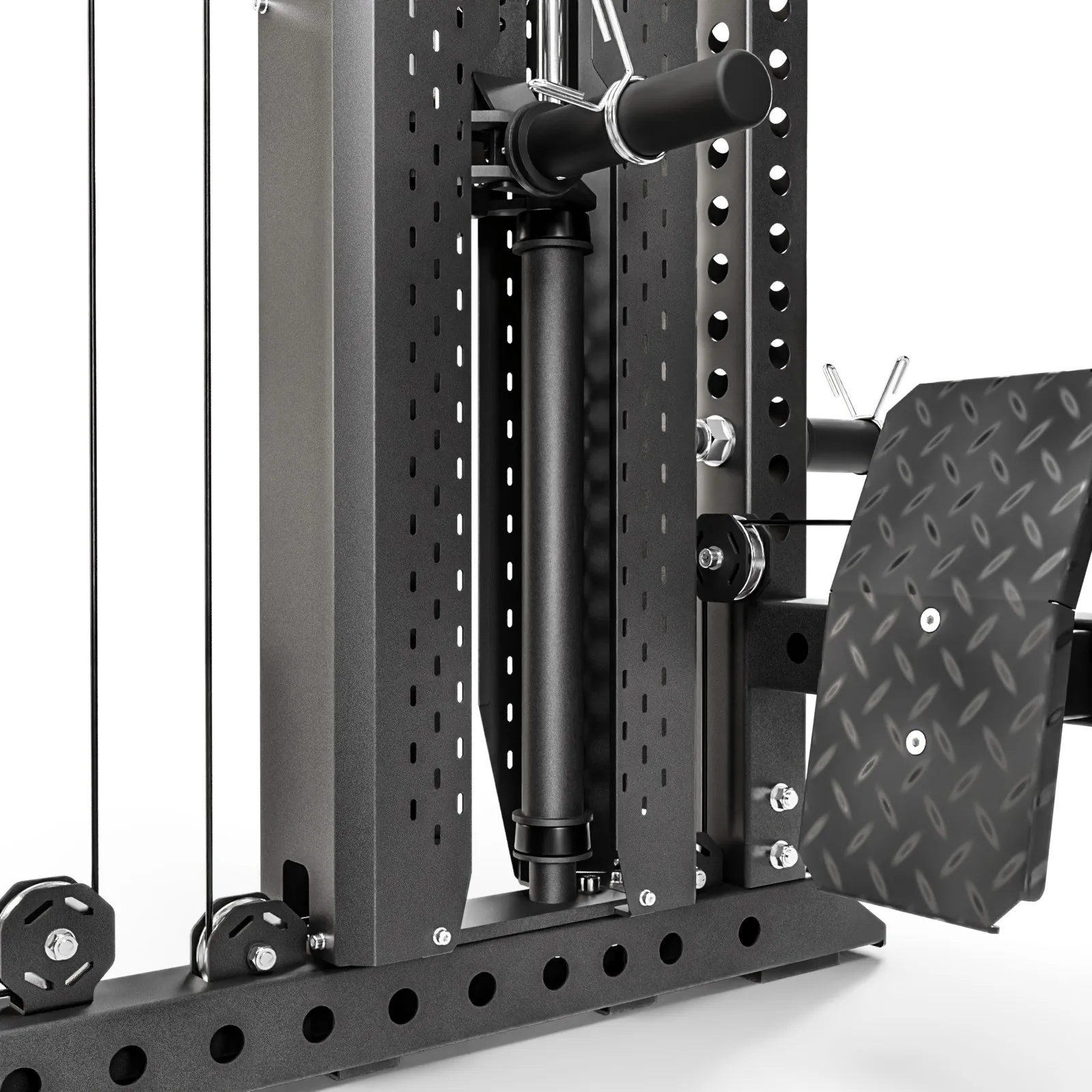

• 2 x drop-down plate horns included

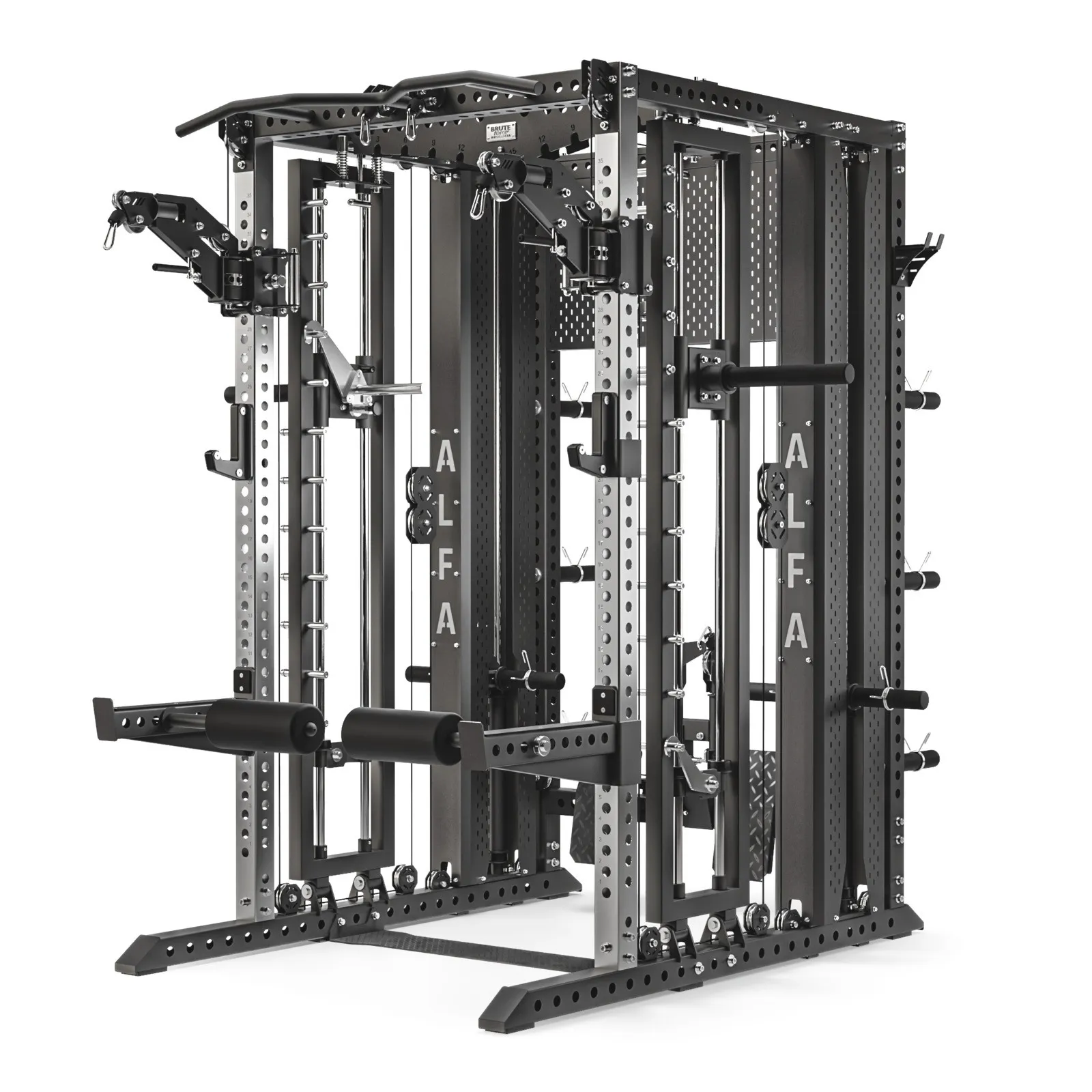

• Drop-down horns allow an additional 200kg / 400lbs of Olympic plates to be added to either weight stack

Heavy-Duty Half Rack

• 35 attachment points
• Uprights: 75 × 75mm / 3" × 3"
• Half Rack Holes: 1" with 2" spacing
• Maximum Weight Rating: 450kg / 990lbs static weight
• Steel multi-grip chin-up: 200kg / 440lbs static weight maximum

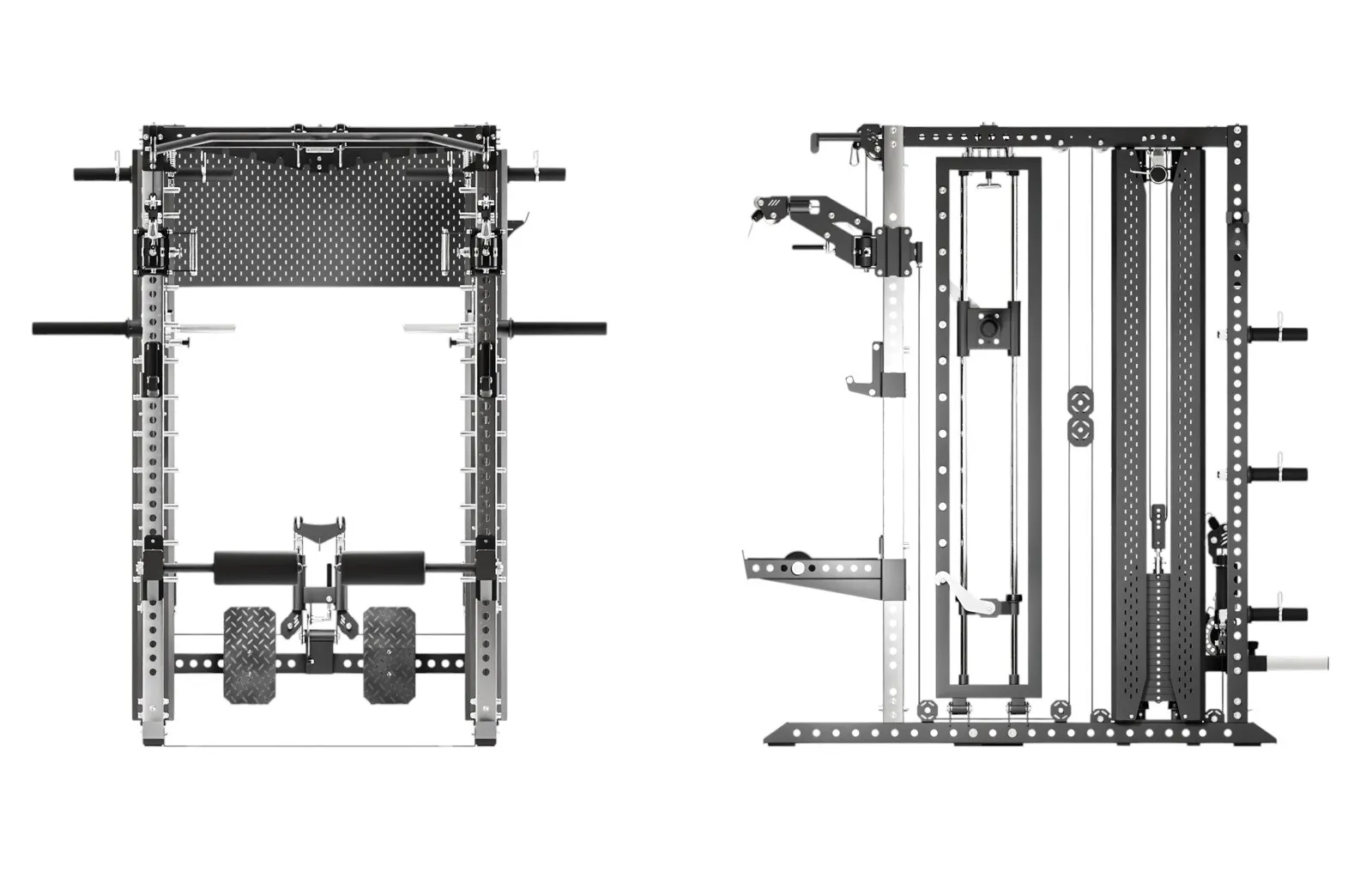

Dimensions

• Height: 2235mm / 88"
• Width: 2060mm / 82" – includes Smith bar sleeves
• Depth: 2060mm / 82"

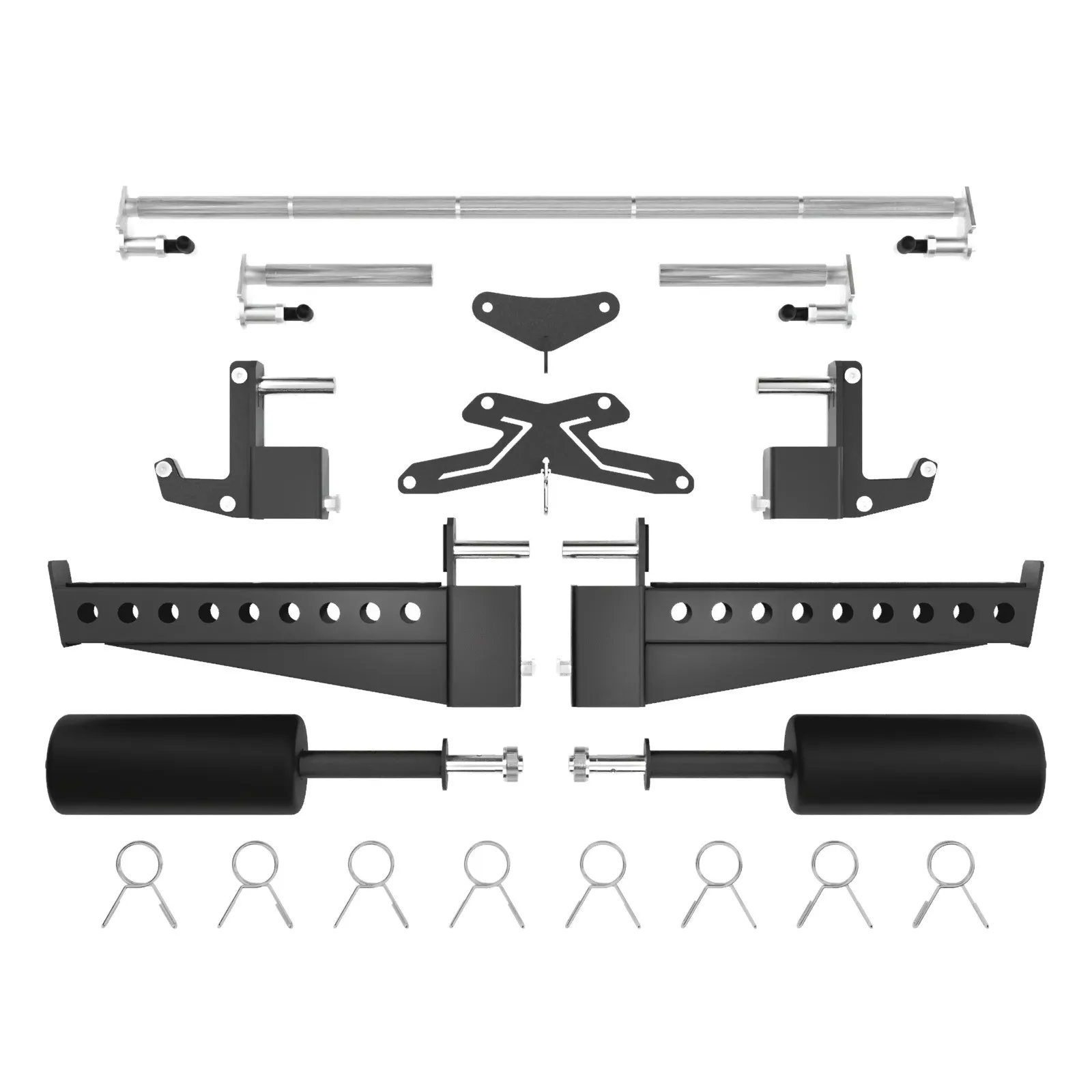

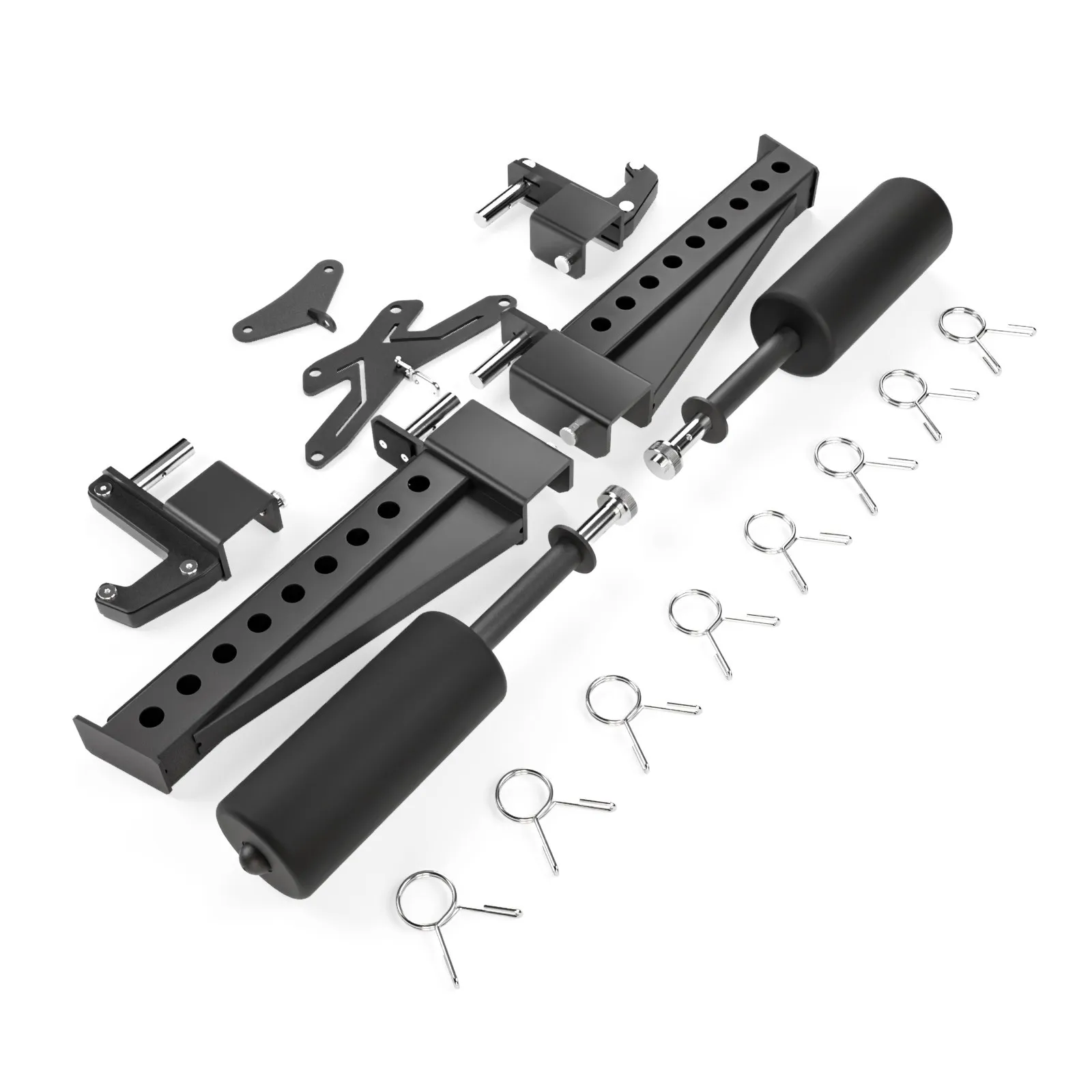

Included Attachments

• Short Smith Handles
• Long Smith Bar
• 2 x J-Hooks
• 2 x Spotter Arms
• 8 x Spring Collars
• Short Connector Plate
• Wide Connector Plate
• 2 x Leg Lock-In Rollers
• 2 x Dipping Handles
• Rear Peg Board
• 6 x Olympic Plate Storage Holders

Optional Add-On Variety Pack

• Lat Pulldown Bar
• 4 x Band Pegs
• 2 x D-Handles
• Tricep Rope
• Close-Grip Handle
• Short Bar
• 2 x Snap Lock Collars
• 2 x J-Hooks
• Core Trainer

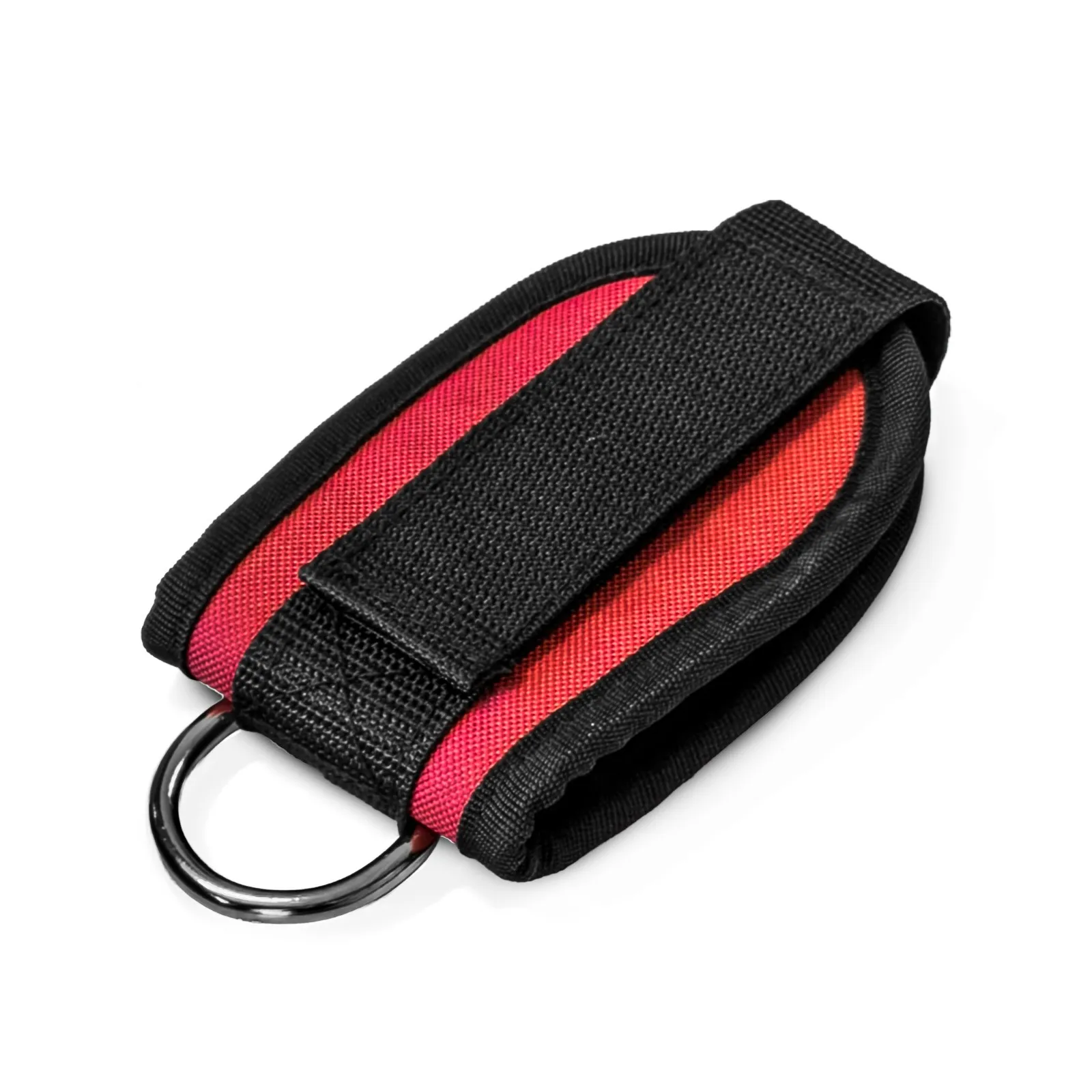

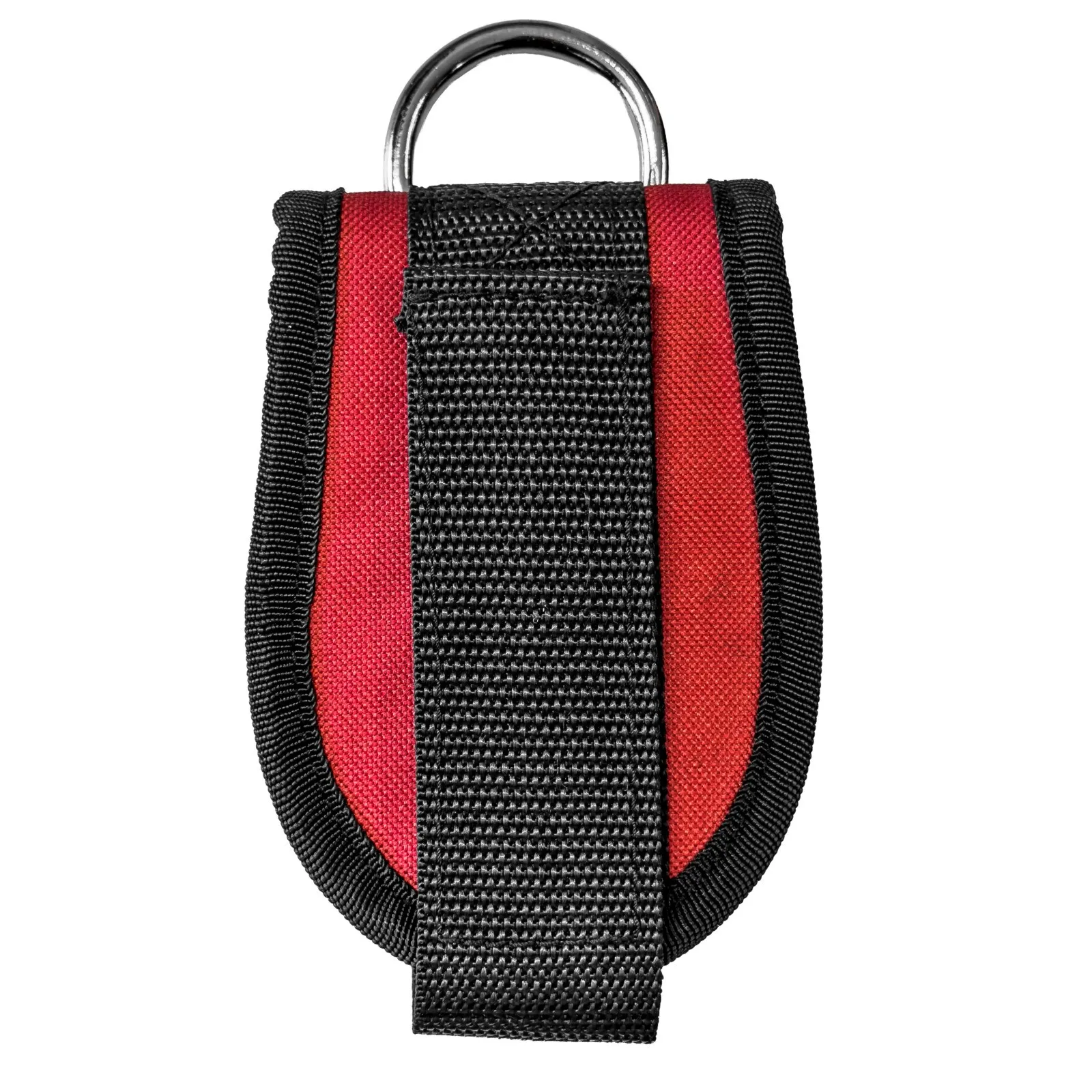

• Ankle Cuff

Technical Specifications

• Available Versions: 200lb Weight Stacks
• Frame Uprights: 75 × 75mm / 3" × 3"
• Rack Hole Size: 1"
• Rack Hole Spacing: 2"
• Attachment Points: 35
• Cable Ratio: 2:1
• Cable Rating: 2000lbs
• Smith Machine Angles: 6 adjustable angles
• Smith Racking Points: 12
• Maximum Rack Static Weight: 450kg / 990lbs
• Multi-Grip Chin-Up Maximum: 200kg / 440lbs static weight
• Long Smith Bar Base Weight: 23kg / 50lbs
• Long Smith Bar Capacity: 350kg / 770lbs static weight
• Short Smith Handle Base Weight: 10kg / 22lbs each
• Short Smith Handle Capacity: 175kg / 385lbs each
• Plate Load Capacity: 200kg / 440lbs per horn pairing
• Individual Plate Horn Capacity: 100kg / 220lbs
• Weight Stacks: Twin 90kg / 198lb precision-cut steel stacks
• Weight Stack Increments: 15
• Overall Dimensions: 2235mm H × 2060mm W × 2060mm D (88" H × 82" W × 82" D)
