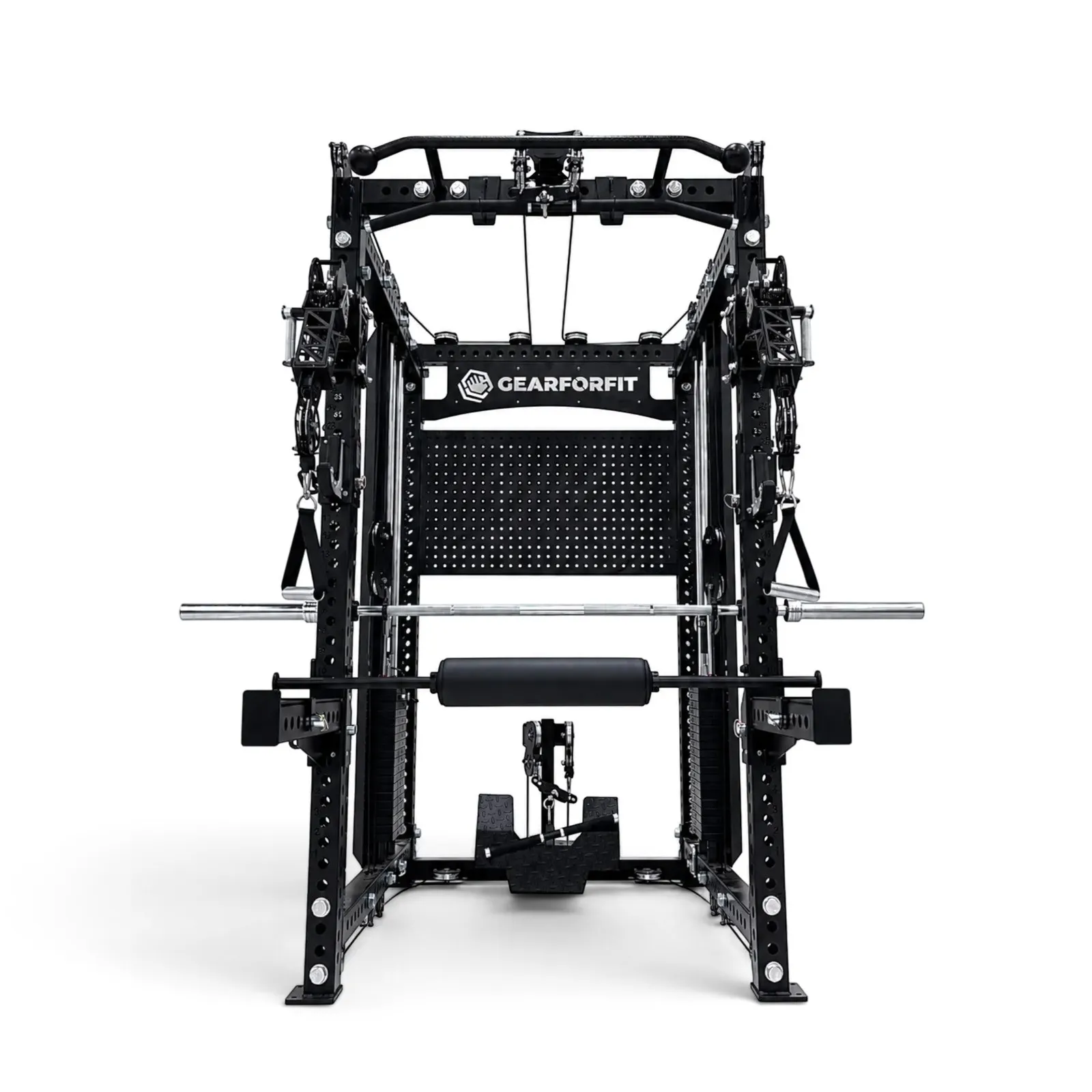

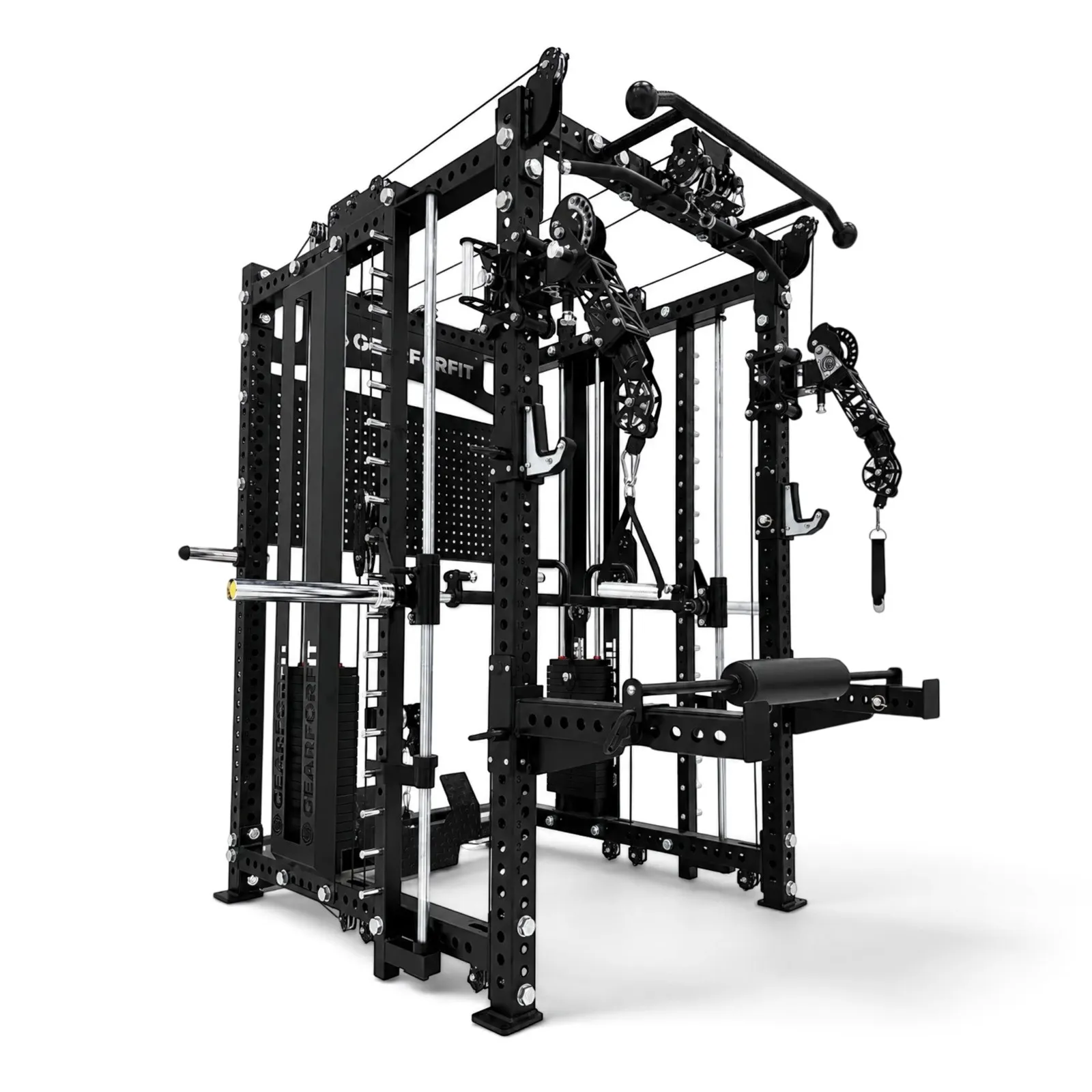

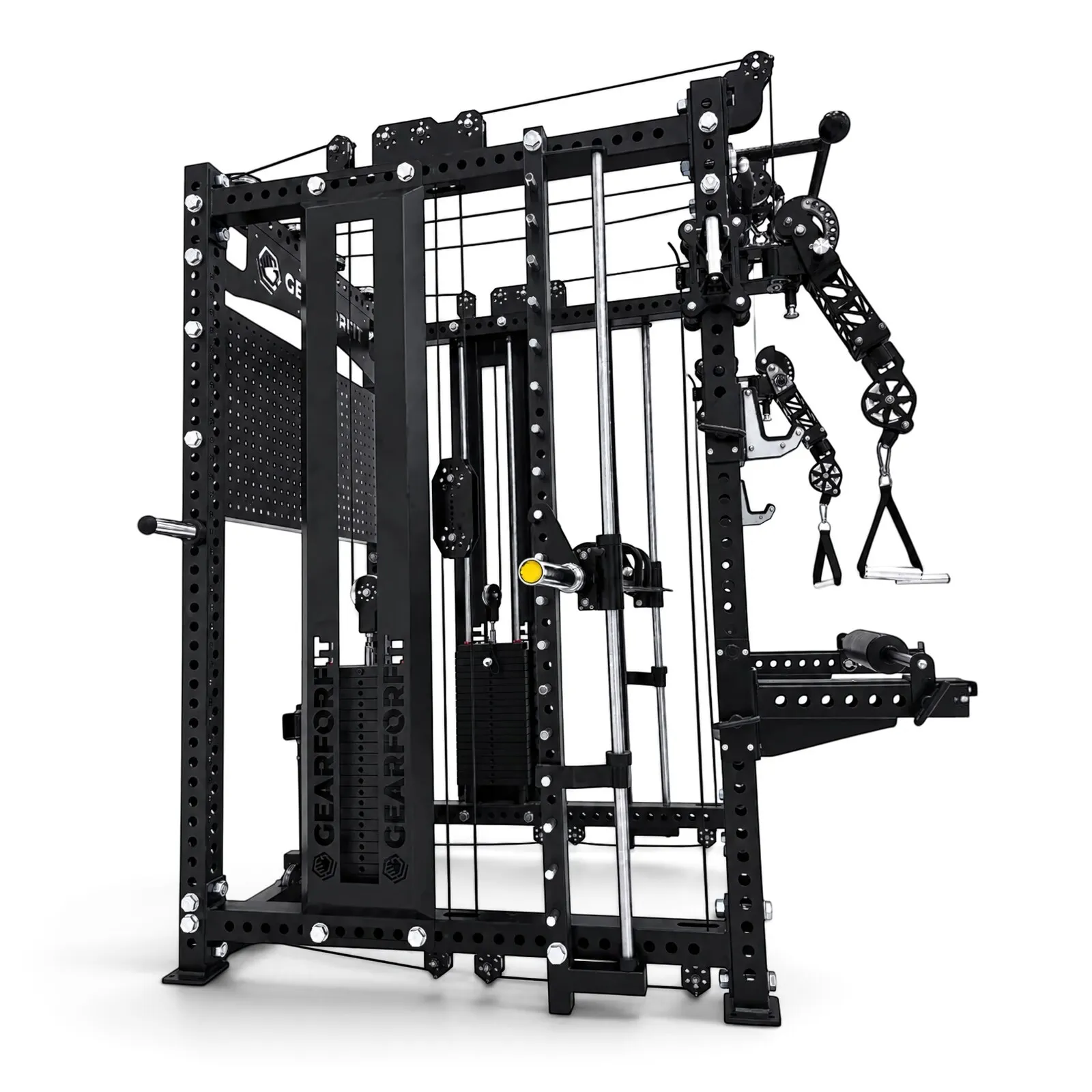

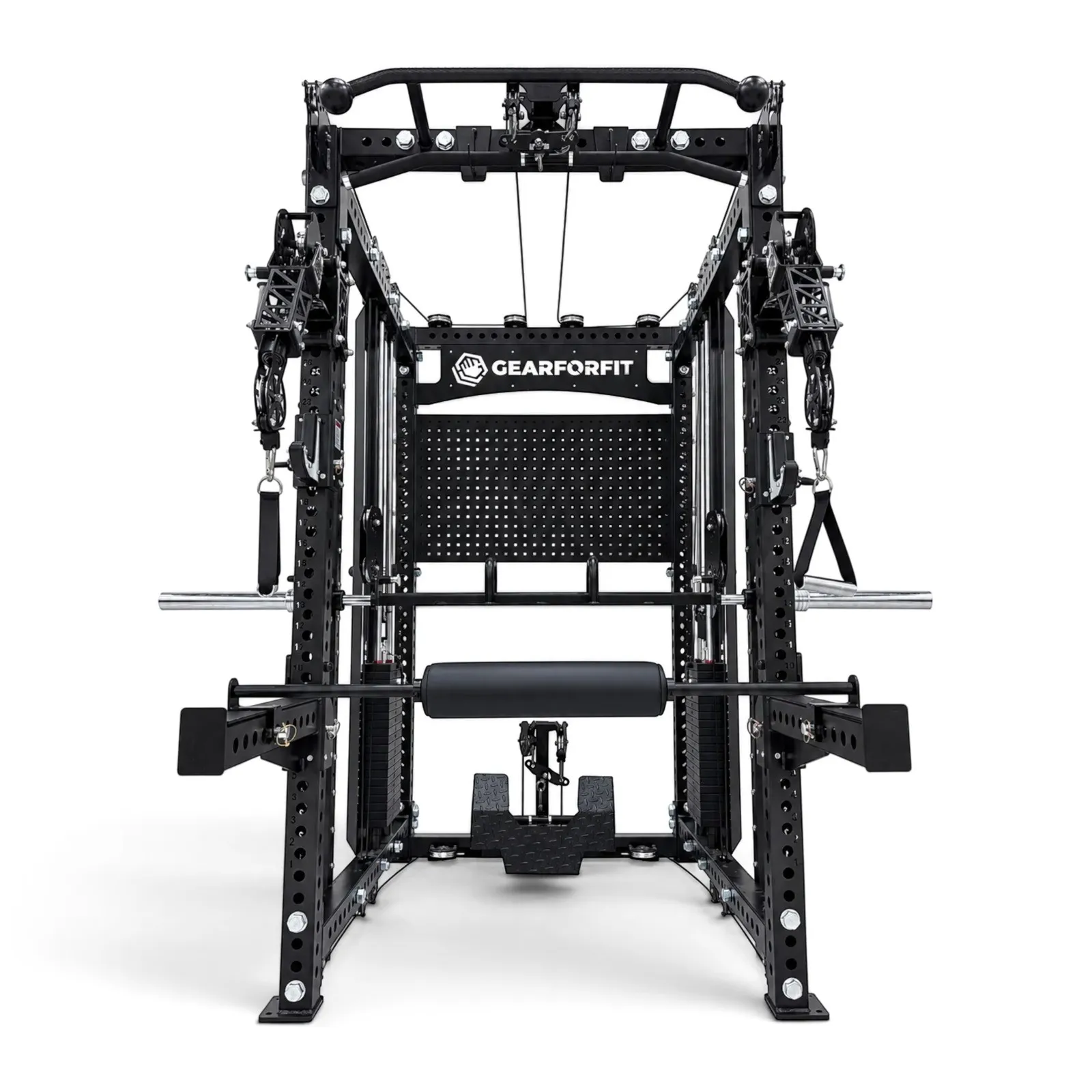

The GearForFit R4 Unit PRO All-in-One Trainer is designed for lifters who want the feel, space, and range of motion of commercial gym equipment in one complete training system. Built from heavy-duty 3" x 3", 11-gauge steel, it combines a Smith machine, power rack, dual-stack functional trainer, 3D pivot arms, and dedicated high/low cable stations.

Dual 220 lb (100 kg) weight stacks power both the adjustable pivot arms and center pulley system. The pivot arms operate at a smooth 2:1 ratio, while the fixed high/low center pulleys provide a 1:1 ratio for heavier exercises such as lat pulldowns and seated rows. PRE-ORDER FOR OCT 15, FREE SHIPPING APPLIES

Key Features

• 2:1 Adjustable Pivot Arms: Ideal for functional training, isolation exercises, presses, flys, rows and unilateral movements
• 1:1 High/Low Center Pulleys: Designed for heavier movements including lat pulldowns and seated rows
• Dual 220 lb (100 kg) Weight Stacks: 11 lb (5 kg) increments with weight stack adapter pins for adding Olympic plates
• Integrated Smith Machine: 58 lb linear-bearing Smith bar with 18 positions and a 1,400 lb capacity
• Low Smith Bar Position: Travels down to 10" from the floor for deadlifts, hip thrusts, floor presses and more
• Open Internal Training Space: Outside-mounted Smith hooks help keep the full 47" internal width available
• Commercial Aluminum Pulleys: 4" aluminum pulleys are used in key positions with pre-lubricated sealed bearings
• 98" Cable Length: Provides excellent range of motion for functional and strength exercises
• Full Weight Stack Shrouds: Protect the moving stacks while maintaining access for weight stack adapter pins
• 90" Pull-Up Bar: Provides additional room for taller users and full-extension pull-ups
• Integrated Storage: Four plate storage pegs plus an oversized 24" x 41" rear pegboard
• Outside Squat Rack: Equipped for free-bar training outside the rack

Included Accessories

• Adjustable Handles pair
• Lat Pulldown Bar
• Short Straight Bar
• Pro J-Hook Pair
• Spotter Arm Pair
• Vertical Leg plate
• Footplate for low rows
• Pegboard Storage
• 2 Tornado Arms
• Double-D Handle
• Knee Holder Bar

Specifications

• Overall Dimensions: 57"D x 47"W x 92"H (144.8 x 119.4 x 233.7 cm)
• Frame: 3" x 3", 11-gauge steel
• Uprights: 1" holes spaced 2" apart (75 x 75 mm with 25 mm holes / 50 mm spacing)
• Weight Stacks: 2 x 220 lb (100 kg)
• Weight Increments: 11 lb (5 kg)
• Stack Configuration: 17 plates + 1 head plate per side
• Pivot Arm Ratio: 2:1
• High/Low Center Pulley Ratio: 1:1
• Cables: 2,000 lb aircraft cables, 98" length
• Pulleys: Aluminum with sealed bearings
• Smith Machine Capacity: 1,400 lb (635 kg)
• J-Hook / Spotter Capacity: 1,500+ lb (680+ kg)
• Smith Bar Weight: 58 lb (26.3 kg)
• Smith System: Linear bearing
• Smith Positions: 18
• Smith Bar Height: 10"–76" (25.4–193 cm) from the ground
• Internal Width: 47" (119.4 cm)
• Squat Rack: Equipped for outside free-bar training
• Plate Storage: 4 side-positioned storage pegs
• Pegboard: 24" x 41" (61 x 104.1 cm)

The GearForFit R4 Unit PRO combines commercial-style training space, heavy-duty construction, versatile cable ratios, and a full Smith and power rack system into one complete strength training station.
